INFRAKER® INFRARED (IR) HEATING ELEMENTS

---

INFRAKER® IR Ceramic Heating Element

• INFRAKER® IR ceramic heating elements suitable for rapid heating/drying purposes
• Available in sizes 240*60mm, 122*122mm, 120*60mm and 60*60mm
• Available in wattages 150W, 200W, 300W, 400W, 500W, 650W and 1000W
• Available with thermocouple (4 wire) and without thermocouple configuration (2 wire)

Application -

• Used in paint curing, printing, drying, thermoforming, anneal

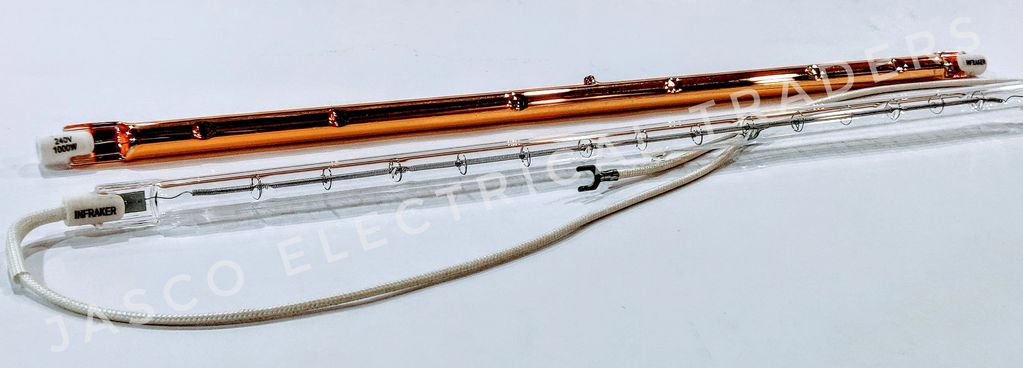

INFRAKER® IR Halogen Tube Heating Element

• INFRAKER® IR halogen tube heaters suitable for rapid heating/ drying purposes
• Available in tube lengths 212mm (500W), 348mm (1000W), 500mm (1600W), 626mm (2000W) and 728mm (2000W and 2500W)
• 348mm IR tube also available in gold coating
• Can be made in other lengths and orders as per customer requirements

Application -

• Used in paint drying equipments, thermoformin
